Make Prehit and Retract together as one adjustable setting. Why do we need to have 2 separate settings?

After we end up our offline programs. We saw that after re runing  on offline scans turns in to the Master (they programmed at findnoms). And stays away from the cad model. Is there any way to stop this change?

Solutions:

If you operate the collision test it will relocate on cad model.

At measured programs scan results could not match the cad model. Because of that we can not analyse our part results.  Is there any solution for that too?  Capture.PNG

I would like to have a button to turn on or off the Auto Dimension feature.  The current method is not an ideal workflow.  It is either always on or always off.  If I could turn it off/on from an icon or from the MSE, then that would be extraordinary.

When an existing Datum gets renamed the GD&T commands don't get updated and still display the old letter.

This should get fixed and handled like the renaming of other features (like circles).

Hi guys,

It's like the Normal View button on Catia.

See below picture..

Use case: Looking for password protection for individual routines, We have the same version of pc-dmis just 1 online version used by 2 or 3 different users for creating and executing programs. User A wants to lock the program for editing. But any user should be in a position to execute that particular program without having to edit. if editing is required, it should be done by User A or one with a known password. Same for User B, C, etc., In this way user A keeps modifying his own written programs without allowing access to other users.  Somewhat similar I know is supported by Protect of PC-DMIS, but the workflow I look for is simple and easy, protect is a much mixed and complicated workflow.  just have an option to lock it whenever required without having to install add-ons. etc.,

Allow R (Radius) or Ø for features in FCF

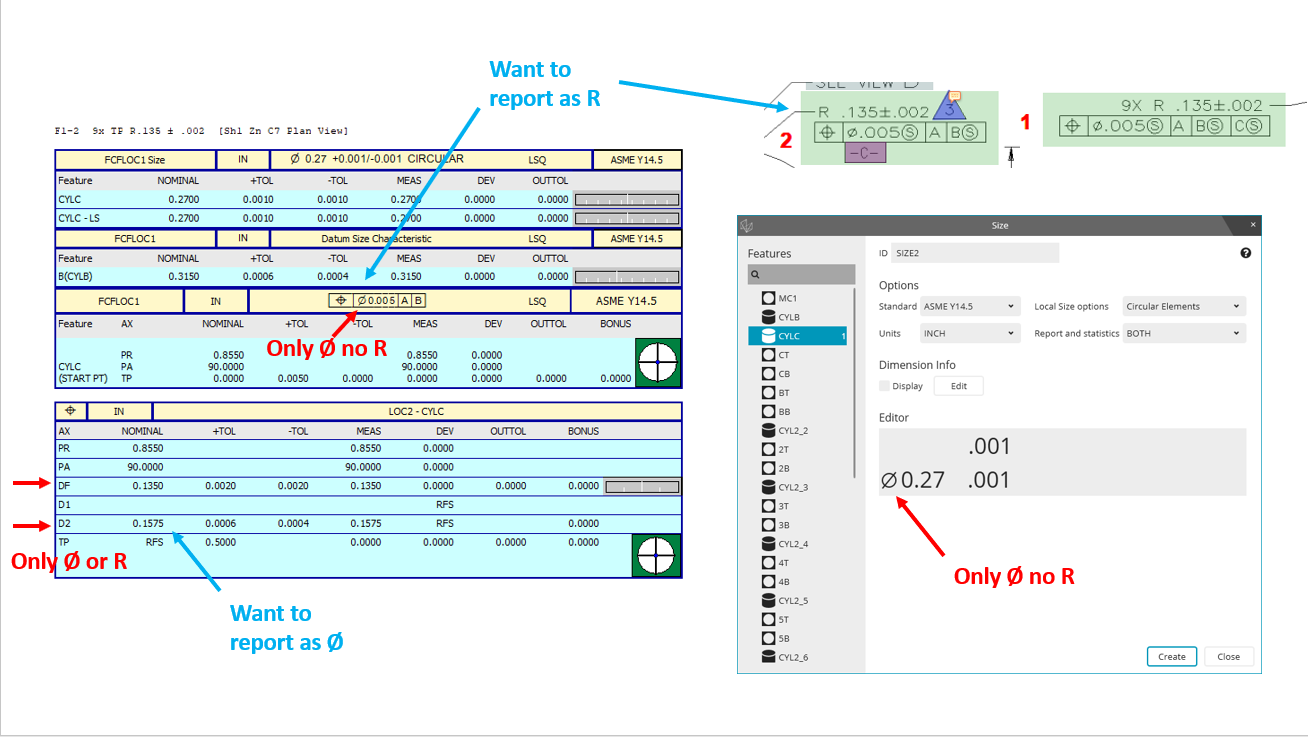

Currently PC DMIS Software only allows Ø callout in FCF except in the Legacy FCF. I have drawing callouts where a Radius is used [ SEE ATTACHED PNG] This causes MMC to be incorrectly reported. Even the legacy does not allow Both R and Ø callouts to be reported differently in a single True Position FCF. You must choose one or the other and Primary Feature and Datum features will be reported as all R or all Ø. I would like to be able to report both R and Ø as needed in any True Position FCF.

Expand Auto Features  to include Auto Edge Line and Auto Edge Circle.  I often used Edge points in the construction of lines and circles.  Screen gets crowded with points that have to be hidden to see other features.   It's an unneeded complication

When using "Set Custom Order" in Excel Form Reports, Allow to high-light fields and drag the whole group into the desired position.
